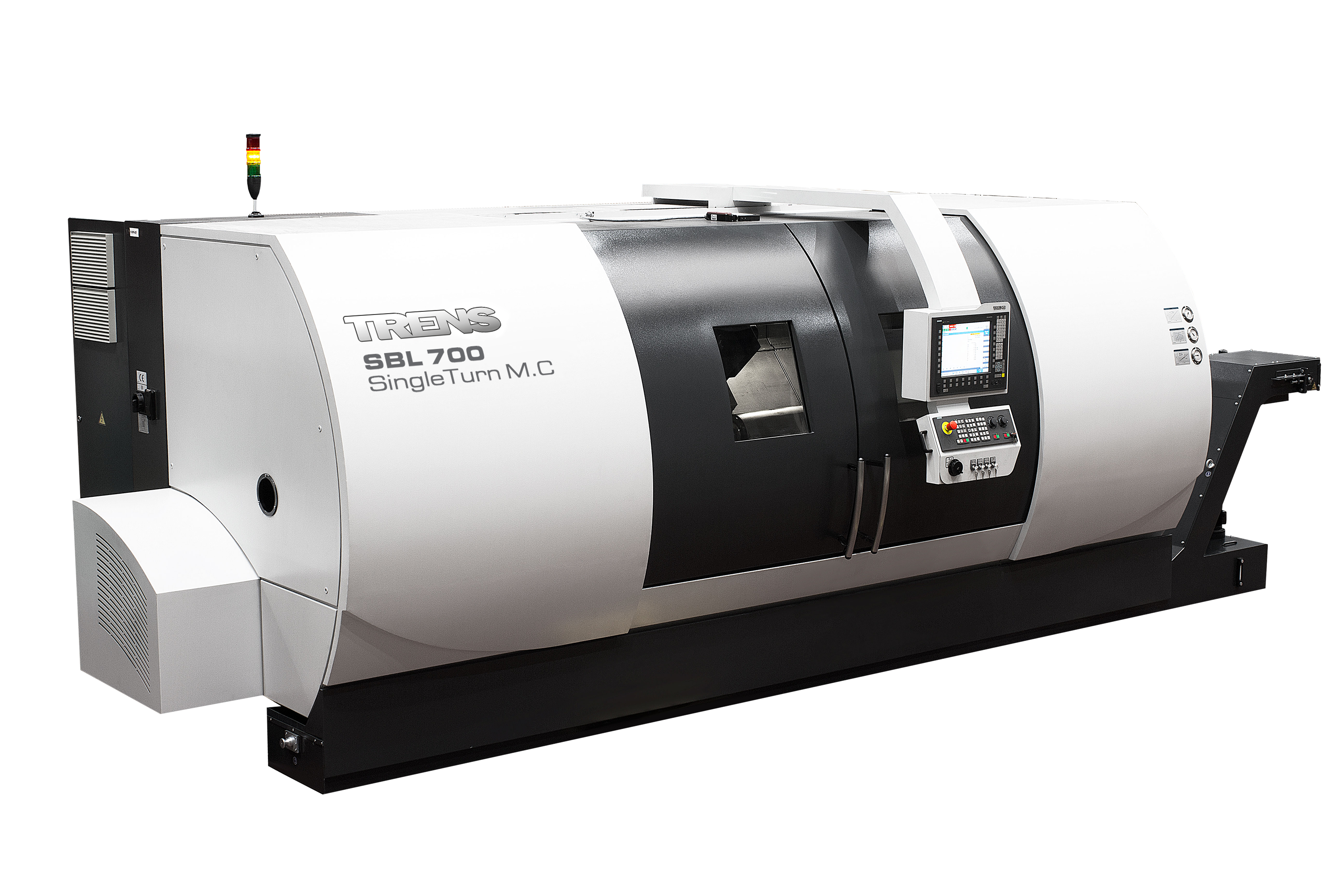

SBL700 SingleTurn M.C

  1. Products
  2. SBL700 SingleTurn M.C
  3. SBL700 SingleTurn M.C
Max swing diameter 750 mm
Max turning diameter 500 mm
Max bar diameter 107 mm
Max diameter of bars with spindle reduction sleeve or with spindle prolongation  97 mm
Max weight of workpiece in centers 2500 kg
Max weight of overhung workpiece 250 kg
https://www.trens.sk/sites/default/files/01_katalog_aj_small_97.pdf
https://www.trens.sk/sites/default/files/tech_list_sbl700_bez_17.pdf

Description

Top representative of SBL range turning centers is designed for medium to large series production for demanding machining of large-dimensions workpieces of complex geometrical shapes.
It is suitable for technological workshops focusing on large dimensions flange and shaft production in engineering where precision, quality and high production efficiency plays crucial role.

Main characteristic features:

  • 12-position turret VDI 50 with live tool positions
  • Remote diagnostics and data management
  • Main spindle motor output 37kW (S1)
  • Wide range of executions and accessories –  hydraulic clamping with chucks or collets, bar feeders, tool probes, automatic door opening, oil mist filtration from work area
  • Covers with reinforced zones – high level of operator´s safety



Carriages and drives
X-axis (VDI 50)
Operating feed mm.min -1 1÷10000
Rapid traverse of cross-slide mm.min -1 16000
Operating stroke mm 420

Z-axis
Operating feed of longitudinal slide mm.min -1 1÷10000
Rapid traverse of longitudinal slide mm.min -1 20000
Operating stroke mm 2170
Operating stroke with radial turret* mm

Tool post systems
12-position axial turret with live tool positions
Number of positions 12
Number of driven tool positions 6
Tool shank diameter (according to DIN 69880) mm 50
Coupling B 20x17, DIN 5482
Max. tool cross-section mm 32x32
Driven tools motor output kW 8
Max. torque Nm 27
Max. RPM min -1 2750

Characteristic features

Productive turning centers of a rigid construction with slant bed designed for high precision and productive machining in challenging conditions of multi-shift operation.

  • Variable building kit based on monolithic slant bed of cast iron – high rigidity and accuracy of the machine
  • Quality components from renowned producers – long lifetime and long reliability while preserving repeatable accuracy of the machine
  • Production of strategic components in own premises with continuous checking and accuracy evaluation at 3D measuring devices
  • X-axis measuring by linear scale as a standard – increased machining accuracy
  • Grease lubrication – lowering the environmental impact
  • No-attendance automated mode with feeders and part catchers – lowering production costs

Main advantages

  • High precision and productive machining of simple as well as complex shape workpieces
  • Steady cutting process with high repeatable accuracy of machining
  • Remote diagnostics and data management
  • Modular concept of the machine allows configuration tailored to the technological needs of production
  • Variety of turrets with VDI couplings with live tool drive
  • Wide scope of executions and accessories – clamping devices, bar feeders, part catchers, tool probes, automatic door opening, vapour exhaust system
  • Newest technologies in the field of drives bring savings in electric energy
